Spec reference

A narratty video is described by a .narratty.yaml file. narratty init writes a commented starter, narratty validate checks one, and narratty schema prints the JSON Schema.

Editor support

The first line narratty init writes tells your editor where the schema is:

# yaml-language-server: $schema=https://raw.githubusercontent.com/ditschi/narratty/v0.2.0/schema/v1.json

Editors that use yaml-language-server read that comment and then offer completion, hover docs and inline errors for the spec: VS Code with the Red Hat YAML extension, Neovim or Helix with yaml-language-server, and JetBrains IDEs. The schema is committed to the repository as schema/v1.json, so each release tag serves the schema of that release. init points the line at the tag of the narratty version you have installed; development builds point at main.

Offline, or to pin a local copy, write the schema to a file and reference it relatively:

narratty schema > .narratty.schema.json

# yaml-language-server: $schema=./.narratty.schema.json

Unknown keys are errors, and validate reports every problem with its line and column, plus a "did you mean" for typos:

$ narratty validate demo.narratty.yaml
demo.narratty.yaml:4:9: scenes[0].actions[0]: unknown action 'type_comand' (did you mean 'type_command'?)

Valid lines that can be left out or written shorter are reported as hints; they do not fail validation:

$ narratty validate demo.narratty.yaml
hint: demo.narratty.yaml:3:3: tts.voice: same as the default; leave it out
hint: demo.narratty.yaml:12:9: scenes[0].actions[2]: 'hold: auto' has no effect at the end of a scene; leave it out
ok demo.narratty.yaml: 2 scenes, 2 narrated, voice kokoro/af_heart

Durations

Every *_ms key and hold take milliseconds (1500) or a duration with a unit: 800ms, 1.5s, 2m.

Top level

Key	Default	Meaning
version	1	Spec format version
meta.title	Untitled	Title of the video
tts		Voice settings, see below
timing		Sync settings, see below
terminal		Look of the recorded terminal
requires.tools	[]	Extra commands the demo needs (checked by doctor)
requires.narratty	unset	narratty versions the spec needs, e.g. ">=0.3"; see Spec versions (since 0.5)
workspace		What directory the demo runs in
sandbox		Permissions of the container
environment		Run the demo shell in a project image, Compose service or container (since 0.3)
end_card	on	Closing card, see below
subtitles	none	none, files, track or burn; see Subtitles (since 0.3)
overlay_styles	{}	Named overlay styles; see Overlays (since 0.3)
scenes	required	At least one scene

tts

Key	Default	Meaning
provider	kokoro	kokoro or piper
voice	af_heart (en_US-lessac-medium with piper)	Voice id; see Voices
piper.length_scale	1.0	Larger is slower speech
piper.sentence_silence	0.2	Seconds of silence between sentences
kokoro.speed	1.0	Speech speed
kokoro.lang	voice's language	Language code, e.g. en-gb
lexicon	{}	How to say terms, e.g. {k8s: kubernetes}; see Pronunciation (since 0.3)

timing

Key	Default	Meaning
narration_buffer_ms	500	Pause after each narration before the next scene
lead_in_ms	300	Silence before the first scene
tail_ms	1000	Time the last frame stays on screen
run_hold_ms	500	Pause after each run action (since 0.3)
pause_ms	100	Pause after each key and ctrl_sequence (since 0.3)

terminal

Key	Default	Meaning
width, height	1200, 700	Video size in pixels
theme	Dracula	Any VHS theme
font_size	22	Font size
typing_speed_ms	40	Time per typed key
shell	bash	bash, zsh, fish or sh
prompt	"$ "	Prompt shown in the recording
layout	plain	plain or editor: an explorer with preview above the shell, see Editor layout (since 0.3)

workspace

Key	Default	Meaning
source	.	Directory the demo runs in, relative to the spec
mode	snapshot	snapshot (throwaway copy), rw (the real directory) or ro (read-only)
include_uncommitted	true	Copy uncommitted files into the snapshot
caches	{}	Caches kept across runs, name: /path/in/container
artifacts	[]	Paths copied out of the workspace after the run

sandbox

Only used when the demo runs in a container. Anything beyond the defaults is shown to you for approval before the first run.

Key	Default	Meaning
network	none	none, allowlist or full
allow_hosts	[]	host:port entries, required with allowlist
env_passthrough	[]	Host environment variables passed in
env	{}	Fixed environment variables
extra_mounts	[]	{host, container, mode: ro\|rw}
ssh_agent	false	Forward the host SSH agent
docker	false	Give the demo your Docker or Podman engine; full host access (since 0.3)

environment

Since narratty 0.3.

Runs the demo shell in your project's image, Compose service or container; see Project environments.

Key	Default	Meaning
image		Image to run the shell in
compose		{file, service}: run in a Compose service (file: one file or a list, default compose.yaml)
container		Run in this running container (needs workspace.mode: rw)
workdir	/work	Where the workspace is mounted and the shell starts; for compose and container the container's working directory
user	host	host (your user id), image (the image's user), a user name or UID[:GID]
env	{}	Variables set in the environment's container
read_only	false	Mount the image's root filesystem read-only
packages	[]	Packages added with the image's package manager
package_manager	auto	auto, apt, apk, dnf, microdnf, yum or zypper
setup	[]	Commands run as root when the image is built
toolkit	prefer	Mount the demo toolkit first (prefer) or last (fallback) on PATH, or not (off)

Set exactly one of image, compose and container.

end_card

The video ends with a short card that shows the narratty logo above "Created with narratty", a link to this documentation and a QR code of the link. The QR code sits beside the logo and text, or above the text on a narrow terminal. When space runs out, the logo goes first, then the QR code. The QR code is drawn in black and white so it scans on any theme.

Key	Default	Meaning
enabled	unset	true or false; unset follows your config (on by default)
duration_ms	4000	How long the card stays on screen (at least 1000)
qr	true	Show the QR code

end_card: false is short for end_card: {enabled: false}. To turn the card off for every video, put this in ~/.config/narratty/config.toml:

[end_card]
enabled = false

--end-card / --no-end-card on the command line win over the spec, and the spec wins over the config.

Scenes

Key	Default	Meaning
id	required	Lowercase letters, digits, - and _; unique
narration	none	Text spoken while the scene plays
actions	[]	What happens in the terminal
hidden	false	Run without recording (setup); cannot have narration
typing_speed_ms	terminal's	Per-scene typing speed
pause_ms	timing.pause_ms	Per-scene pause after each key and ctrl_sequence (since 0.3)
narration_start	with_actions	Or after_actions
timelapse	none	Show the scene this many times faster (greater than 1) (since 0.3)
expect_exit	success	Exit codes of the scene's commands: success, failure or any; see Exit codes (since 0.3)
fast	--fast	true/false: fill long pauses with still frames or not; see Fast pauses (since 0.3)

A scene lasts as long as its actions or its narration plus narration_buffer_ms, whichever is longer.

Timelapse

A long step (a download, a build) can be shown sped up instead of hidden:

- id: install
  narration: Installing the dependencies takes a while; here it is eight times faster.
  actions:
    - run: npm ci
- id: install-runs
  timelapse: 8
  actions:
    - wait: {screen: "added \\d+ packages", timeout_ms: 600000}

• The whole scene is sped up, typing included, so type the command in the scene before and only wait in the timelapse scene.
• Narration plays at normal speed. If it is longer than the sped-up footage, the last frame stays until it ends. With narration_start: after_actions it starts when the footage ends.
• A timelapse scene cannot be hidden or use hold: auto.
• narratty plan cannot know how long the waits take, so its length for the scene counts only the fixed actions.
• The video is re-encoded once (H.264) to speed up the scenes. narratty tape shows where the scenes are, but plain vhs does not speed them up.

Actions

Action	Example	Does
run	- run: ls -la	Types the command, presses Enter, pauses timing.run_hold_ms; may set its own expect_exit (since 0.3)
type_command	- type_command: "ls -la"	Types the text, without Enter
ctrl_sequence	- ctrl_sequence: C-c	Presses Ctrl plus a key
key	- key: Enter or - key: Down 3	Presses a key, optionally repeated
hold	- hold: 1.5s or - hold: auto	Waits; auto waits until the narration is done
wait	- wait: "Done" or - wait: {screen: "Done", timeout_ms: 1m}	Waits until the screen matches a regex (default timeout 15 s)
wait	- wait: {prompt: true, timeout_ms: 10m}	Waits until the command has finished and the prompt is back (since 0.3)
diff	- diff or - diff: [src, README.md]	Shows what changed since the recording started, optionally only for some paths (since 0.3)
focus	- focus: explorer	Moves the keyboard to explorer or terminal (editor layout) (since 0.3)
reveal	- reveal: src/app.py	Selects a path, relative to the workspace, in the explorer (editor layout) (since 0.3)
overlay	- overlay: "Open src/main.py"	Shows text over the video; see Overlays (since 0.3)
browser	- browser: docs/site/index.html	Shows a web page over the terminal; see Browser views (since 0.3)

Keys: Enter, Tab, Space, Backspace, Delete, Escape, Up, Down, Left, Right, Home, End, PageUp, PageDown, Insert. Names are case-insensitive. Older specs write Enter as - enter; it still works, key: Enter is the current form.

Every list item starts with -. A scene always waits for its narration after its last action, so hold: auto is only needed in the middle of a scene; a scene has at most one. See Writing specs for when to use which action.

diff, focus and reveal take no time in the video: they run while recording is hidden, and the screen changes at once. Add a hold after them for a pause.

diff compares against a copy of the workspace taken when the recording starts, kept outside the workspace (its own .git is not touched). It honours .gitignore and leaves out __pycache__. The output is coloured with delta, else bat, else git. In the plain layout the screen is cleared and the diff is printed; in the editor layout it opens in a popup that stays until the next key press of the scene or its end.

Exit codes

narratty logs the exit code of every command line run at the shell prompt and checks it against expect_exit after recording:

Value	Build fails when
success (default)	a command exits non-zero
failure	no command exits non-zero, e.g. an error demo that suddenly works
any	never; exit codes are not checked

- id: typo
  narration: A typo gives a helpful error.
  expect_exit: failure
  actions:
    - run: git stauts
- id: retry
  actions:
    - run: make test
    - run: curl https://example.org
      expect_exit: any            # this command only

The most specific setting wins: a run action's expect_exit, then the scene's, then the command line (--ignore-exit makes any the default), then success.

The build exits with code 7 and names each offending command; the video is still written so you can inspect it. A line's exit code is that of its last command (a; b reports b). Commands stopped with C-c or C-z do not count as failures. Commands inside programs (a REPL, an editor, a nested shell) are not checked, nor is anything with shell: sh. In the editor layout, the terminal pane's commands are checked. In a project environment the log is read from its container after recording. With bash 3.2 (macOS's default) narratty turns on shell history to read the command lines, so key: Up recalls earlier commands there.

Overlays

Since narratty 0.3.

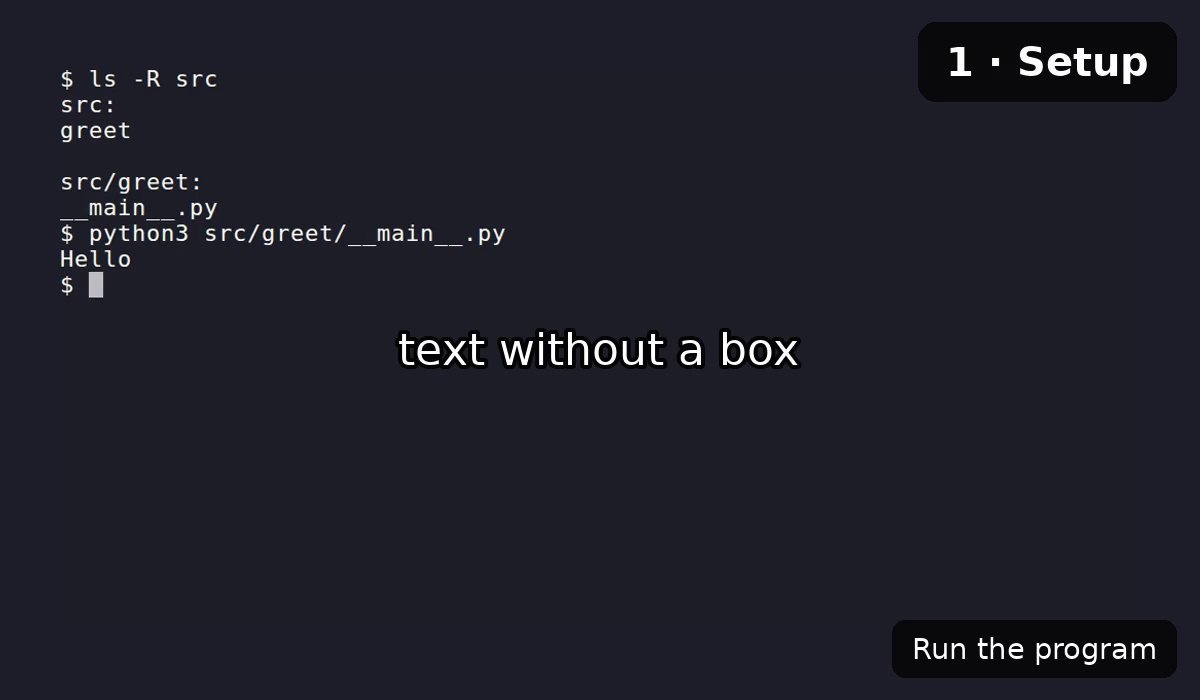

An overlay shows text over the video, in a rounded, semi-transparent box: a chapter title, the file the narration talks about. It stays readable while the terminal scrolls.

overlay_styles:
  file: {position: top, size: small, color: "#f1fa8c"}

scenes:
  - id: setup
    narration: Let's set up the project.
    actions:
      - overlay: {text: "1 · Setup", style: chapter}
      - run: make setup
      - overlay: Run the tests next
      - overlay: {text: src/greet/__main__.py, style: file, duration_ms: 3000}

The overlay appears where its action stands in the scene. It stays until the first of: duration_ms has passed, another overlay takes its position, or the scene ends. With keep: true it stays past the scene until another overlay takes its position (the chapter style keeps). The box is sized around the text; \n starts a new line. The top right is usually free of terminal text; the bottom is shared with burned-in subtitles.

overlay: "text" uses the default style. A mapping takes text, an optional style and any style key to change just this overlay:

Style key	default	Meaning
position	bottom-right	top-left, top, top-right, left, center, right, bottom-left, bottom, bottom-right
size	medium	small, medium, large, or a factor of terminal.font_size (1.3 = medium)
color	#ffffff	Text colour, #rrggbb
background	#000000b3	Box colour, #rrggbbaa (the last two digits are the opacity)
box	true	false shows the text alone, with a dark outline
bold	false	Bold text
duration_ms	unset	Hide after this long
keep	false	Stay past the end of the scene

Built-in styles: default (above) and chapter (top-right, large, bold, keep). overlay_styles changes them or adds your own; each style starts from default, so it only lists what differs. Overlays fade in and out. They need the mp4 to be re-encoded, which build does when a spec has any; in the cast page they are drawn over the player and follow its clock.

Browser views

Since narratty 0.3.

A browser view shows a web page or a local HTML file as a browser renders it, for example the rendered documentation next to its Markdown source. Chromium (which VHS records with) captures the page at the video's width; the view covers the terminal under an address bar until its scene ends.

sandbox:
  network: full       # only for web pages; local files need no network
scenes:
  - id: page
    narration: This is the page you should see.
    actions:
      - browser: {url: "https://github.com/ditschi/narratty", scroll: 1400}
  - id: docs
    narration: The built documentation looks like this.
    actions:
      - run: mkdocs build
      - wait: "Documentation built"
      - browser: {url: site/index.html, scroll: auto}

Key	Default	Meaning
url	required	An http(s) URL, or an HTML file in the workspace
scroll	none	auto scrolls to the end of the page (at most 4 screens), a number scrolls that many pixels
duration_ms	unset	Hide after this long
load_ms	5000	How long the page may load before it is captured

browser: URL is short for browser: {url: URL}. The page is captured once, after it has loaded; scrolling pauses a moment at the top and at the bottom and takes the rest of the time the view is shown. A later view in the same scene replaces an earlier one, and overlays are drawn on top. Web pages need network access: in the container that is sandbox: {network: full}. Prefer local files for pages behind a login; narratty never signs in. The whole example is in examples/browser.

Spec versions

version changes only when a spec that worked before would break: a key is removed, renamed or changes its meaning. New keys, actions and short forms keep the version, so every version: 1 spec keeps working with newer narratty releases.

A spec that uses newer keys needs a newer narratty, which version does not tell. requires.narratty does:

requires:
  narratty: ">=0.3"   # uses run, key: Enter and durations

narratty checks it before anything else in the spec, so an older narratty that knows the key reports the version to install instead of the keys it does not know. Releases before 0.5 do not know requires.narratty and reject it as an unknown key.

Release	Added to version: 1
0.3	run action, key: Enter (the bare - enter still works), durations like 1.5s, wait: "pattern", wait: {prompt: true}, timing.run_hold_ms, timing.pause_ms and scene pause_ms, tts.lexicon, subtitles, environment, sandbox.docker, terminal.layout, overlays (overlay, overlay_styles), browser, diff, focus, reveal, scene timelapse, expect_exit and fast
0.5	requires.narratty
